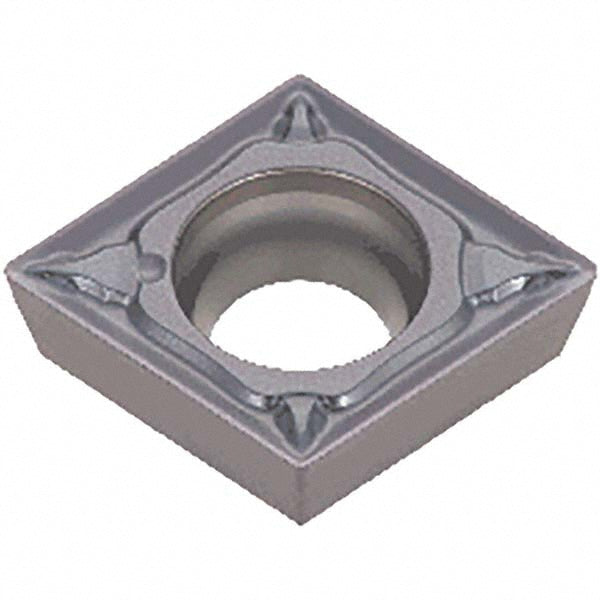

CPMT32.52PS Carbide Insert, Grade AH725, TiAlN - Tungaloy 6863527

Tungaloy

CPMT32.52PS Carbide Insert, Grade AH725, TiAlN - Tungaloy 6863527

MFR# 6863527ISO/ANSI# CPMT 32.52 PSSeries CPMT-PS

$12.75List $16.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeAH725
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6863527 is a CPMT32.52PS carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerPS
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberCPMT 32.52 PS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT32.52PS
Length range0.3000 - 0.4000
Manufacturers catalog number6863527
Manufacturer gradeAH725
Material gradeP15; P30; M15; M30; K25; K30; S15; S25
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
