Tungaloy

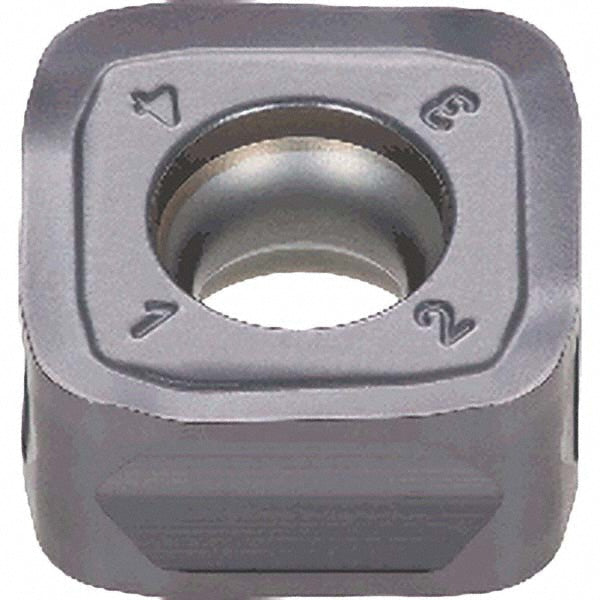

SQMU1206ZSR-MJ Carbide Insert, Grade AH725, TiAlN - Tungaloy 6869928
MFR# 6869928ISO/ANSI# SQMU1206ZSR-MJSeries SQMU-MJ
$37.26List $46.95
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeAH725
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6869928 is a SQMU1206ZSR-MJ carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chip breakerMJ
Clearance codeQ
Coating finishTiAlN
Coating processPVD
Corner radius in5/64
Cutting edge styleHoned
Full radiusNo
Included angle90degree
Inscribed circle0.4610
Insert handRight Hand
Insert holding methodScrew
Insert length0.4610
Insert materialCarbide
Insert shapeSquare
Insert size code1206
Insert styleSQMU
Insert thickness0.2360
Iso codeSQMU1206ZSR-MJ
Manufacturers catalog number6869928
Manufacturer gradeAH725
Material gradeSub Micrograin
Maximum depth of cut0.0790
Multi use applicationTurning; Grooving; Milling; Drilling
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Tolerance codeM
Width0.4610in
Wiper edgeNo
