Tungaloy

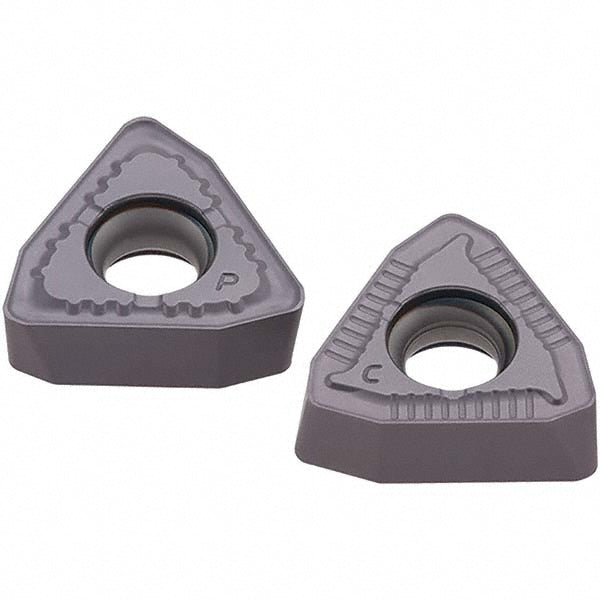

0.3150" IC Solid Carbide Insert, Grade AH9030, Coated - Tungaloy 6892256
MFR# 6892256
$21.29List $27.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAH9030
MaterialSolid Carbide
CoatingCoated
Description
The Tungaloy 6892256 is a solid carbide indexable insert, grade AH9030, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerDJ
Coating finishCoated
Coating processPVD
Corner radius0.0310
Cutting directionRight Hand
Hole diameter0.1340
Inscribed circle0.3150
Insert materialSolid Carbide
Insert size08X408
Insert size code08
Insert styleWWMU
Manufacturer gradeAH9030
Number of cutting edges6
Primary workpiece materialStainless Steel; Steel
ShapeTrigon
StandardsISO
Thickness0.1540
