Tungaloy

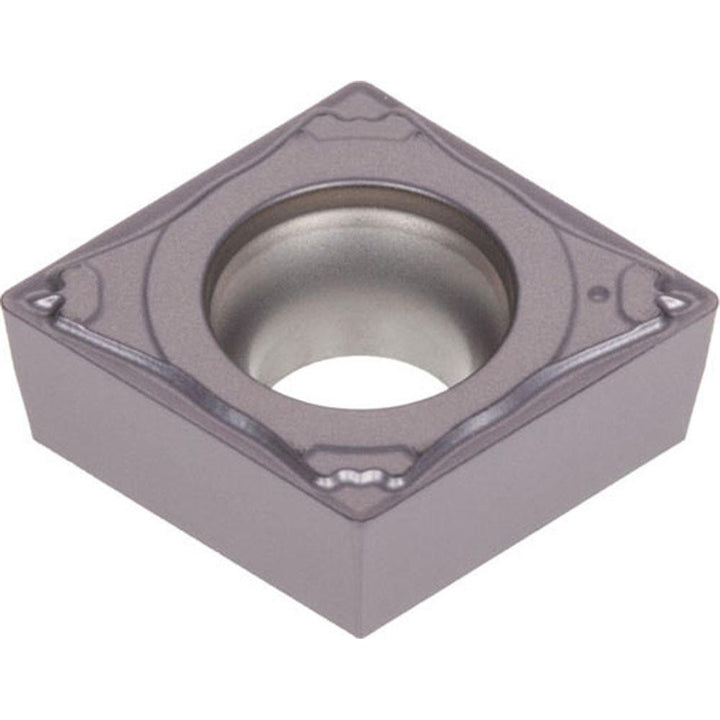

Diamond 80 1/4" IC Cermet Insert, Grade GT9530, TiCNO - Tungaloy 6998285
MFR# 6998285ISO/ANSI# CCMT 21.51 PFSeries CCMT-PF
$10.20List $12.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeGT9530
MaterialCermet
CoatingTiCNO
Description
The Tungaloy 6998285 is a cermet indexable insert, grade GT9530, TiCNO coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiCNO
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCCMT 21.51 PF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCermet
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number6998285
Manufacturer gradeGT9530
Material gradeP10; P20; M20; K10
Maximum depth of cut0.0590
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
