Tungaloy

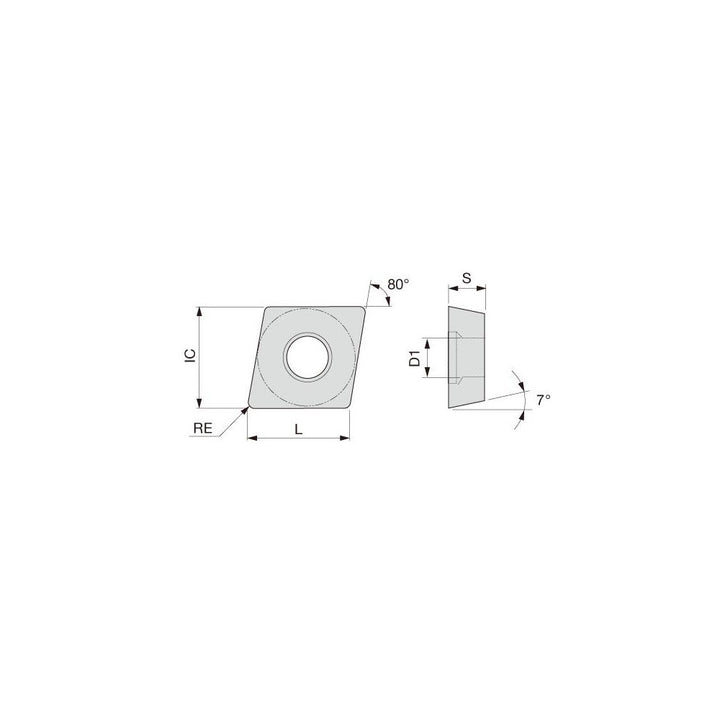

CCMT060202 Cermet Insert, Grade GT9530, TiCNO - Tungaloy 6998297
MFR# 6998297ISO/ANSI# CCMT 21.50.5 PSSeries CCMT-PS
$10.20List $12.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeGT9530
MaterialCermet
CoatingTiCNO
Description
The Tungaloy 6998297 is a CCMT060202 cermet indexable insert, grade GT9530, TiCNO coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerPS
Clearance codeC
Coating finishTiCNO
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCCMT 21.50.5 PS
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCermet
Insert shapeDiamond 80
Insert size code21.50.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202
Length range0.0000 - 0.3000
Manufacturers catalog number6998297
Manufacturer gradeGT9530
Material gradeP10; P20; M20; K10
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
