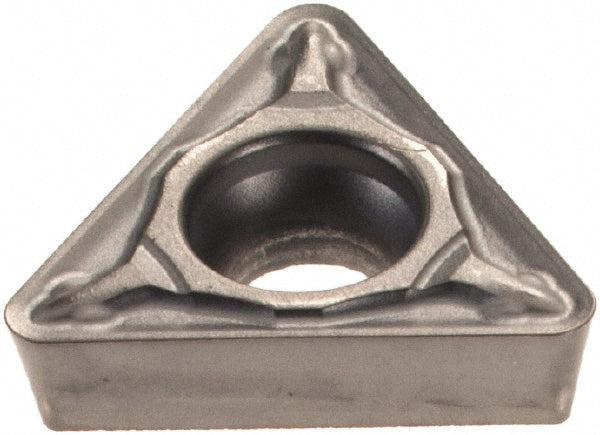

TPMT110208-PS Cermet Insert, Grade NS9530 - Tungaloy 6998547

Tungaloy

TPMT110208-PS Cermet Insert, Grade NS9530 - Tungaloy 6998547

MFR# 6998547ISO/ANSI# TPMT 21.52 PSSeries TPMT-PS

$7.80List $10.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeNS9530
MaterialCermet

Description

The Tungaloy 6998547 is a TPMT110208-PS cermet indexable insert, grade NS9530. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerPS
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle60degree
Industry standard numberTPMT 21.52 PS
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCermet
Insert shapeTriangle
Insert size code21.52
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT110208-PS
Length range0.4000 - 0.5000
Manufacturers catalog number6998547
Manufacturer gradeNS9530
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width0.4330in
Wiper edgeNo
