Tungaloy

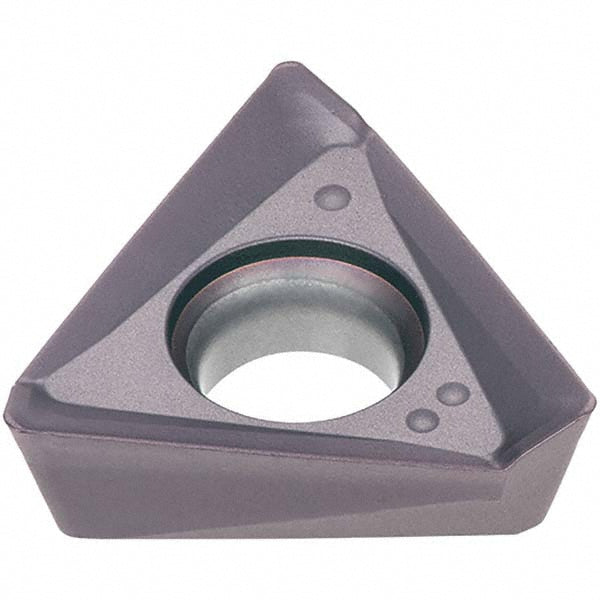

TOMT100408PDER-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6999179
MFR# 6999179ISO/ANSI# TOMT100408PDER-MJ AH120Cat# TOMT100408PDER-MJSeries TOMT
$20.67List $26.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6999179 is a TOMT100408PDER-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeTOMT100408PDER-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEPA10; TPA10; TLA10; HPA10-M; C-EPA
Cutting edge styleHoned
Included angle degree60
Inscribed circle0.3390
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size10
Insert size code100408
Insert styleTOMT
Iso codeTOMT100408PDER-MJ AH120
Length0.4130
Length range0.4000 to 0.4500
Manufacturers catalog numberTOMT100408PDER-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.3940
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsISO
Thickness0.1850
Thickness range0.1850 to 0.2000
Width0.4130
