2-Flute Solid Carbide Ball End Mill, Hardmax - US Union Tool 2455414

US Union Tool

2-Flute Solid Carbide Ball End Mill, Hardmax - US Union Tool 2455414

MFR# 2455414Cat# HSLB2040-140Series HSLB

$50.40List $64.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingHardmax

Description

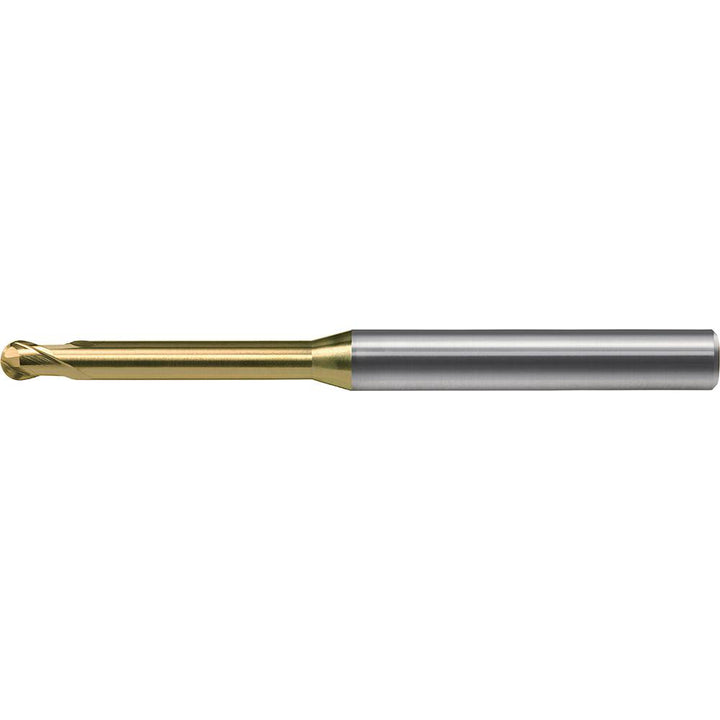

The US Union Tool 2455414 is a 2-flute Solid Carbide (Super MG) ball end mill with a Hardmax finish for longer tool life. Suited for steel, hard material. Series HSLB.

Specifications

ChipbreakerNo
Coating finishHardmax
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut (mm)3.20
Length typeExtended
Manufacturers catalog numberHSLB2040-140
Material gradeSuper MG
Material removal typeRoughing & Finishing
Mill diameter (mm)4.00
Mill diameter tolerance+0.000/-0.015 mm
Neck diameter (mm)3.95
Neck length (mm)10.80
Nose radius (mm)2.00
Number of flutes2
Overall length (mm)70.00
Primary workpiece materialSteel; Hard Material
Reach length (mm)14.00
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
Shank diameter (mm)6.00
Shank diameter tolerance+0.000/-0.005 mm
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
