US Union Tool

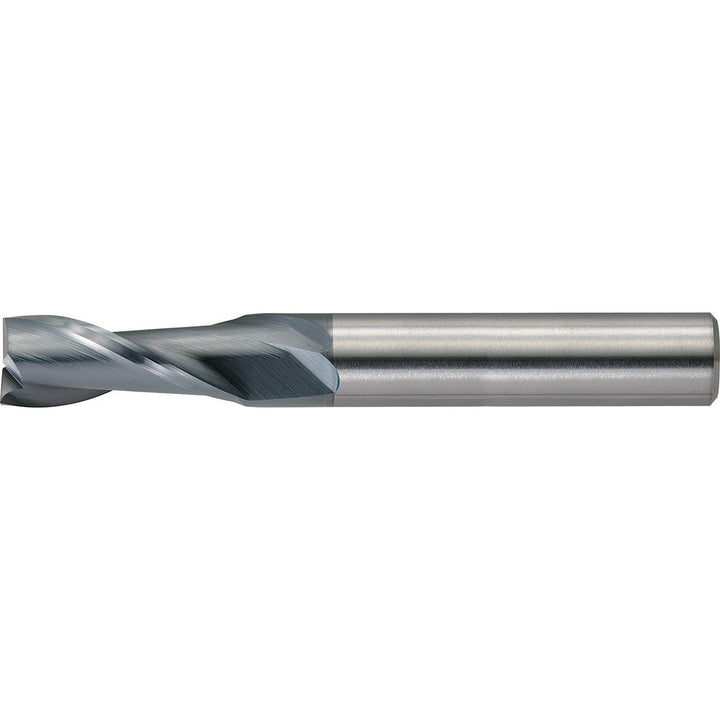

0.2520" 2-Flute Solid Carbide Square End Mill, UT - US Union Tool 2465062
MFR# 2465062Series C-CES2000
$91.26List $115.02
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingUT
Description
The US Union Tool 2465062 is a 0.2520 2-flute Solid Carbide (Super MG) square end mill with a UT finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. Series C-CES2000.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishUT
Coating finish familyUT
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut (mm)16.00
Length typeRegular
Material gradeSuper MG
Mill diameter0.2520
Mill diameter tolerance-0.02
Number of flutes2
Overall length (mm)60.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter (mm)8.00
Shank typeStraight
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
