Vargus

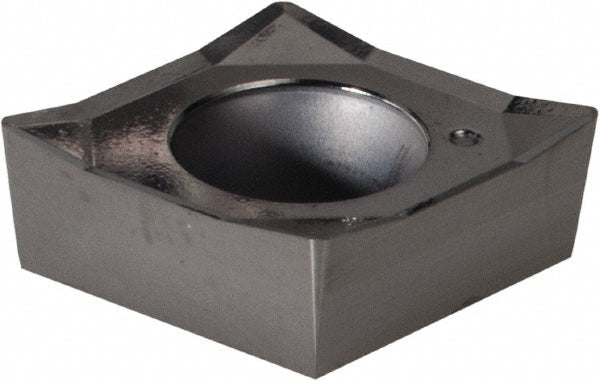

Diamond 3/8" IC Carbide Insert, Grade V12K - Vargus 11691
MFR# 11691Series CCGT
$15.78List $19.65
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeV12K
MaterialCarbide
Description
The Vargus 11691 is a carbide indexable insert, grade V12K.
Specifications
Chip breakerAF
Clearance codeC
Corner radius in1/64
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Manufacturer gradeV12K
RakePositive
Relief angle7
Tolerance codeG
