Vargus

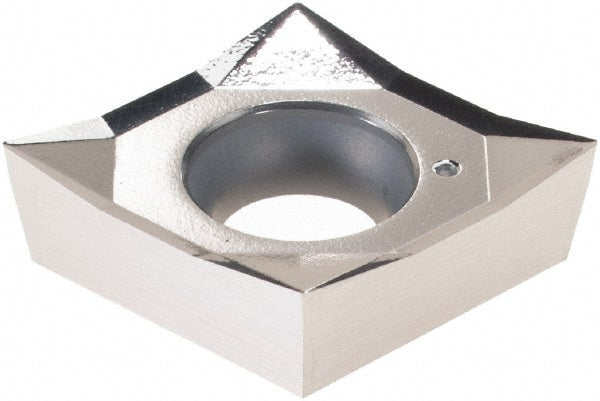

Diamond 1/2" IC Carbide Insert, Grade V12K - Vargus 11693
MFR# 11693Series CCGT
$18.49List $21.14
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeV12K
MaterialCarbide
Description
The Vargus 11693 is a carbide indexable insert, grade V12K.
Specifications
Chip breakerAF
Clearance codeC
Corner radius0.0079
Hole diameter0.2170
Included angle80
Inscribed circle in1/2
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code430.5
Insert styleCCGT
Insert thickness in3/16
Manufacturer gradeV12K
RakePositive
Relief angle7
Tolerance codeG
