Vargus

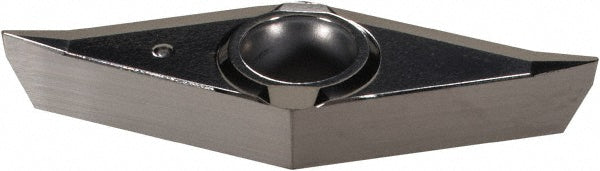

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade V12K - Vargus 13181
MFR# 13181ISO/ANSI# VCGT160402Series VCGT
$25.17List $31.36
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeV12K
MaterialCarbide
Description
The Vargus 13181 is a carbide indexable insert, grade V12K.
Specifications
Ansi insert codeVCGT330.5
Ansi size code330.5
Chip breakerAF
Clearance codeC
Corner radius0.0079
Hole diameter0.1730
Included angle35
Inscribed circle in3/8
Insert holding methodScrew
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330.5
Insert styleVCGT
Insert thickness in3/16
Iso insert codeVCGT160402
Iso size code160402
Manufacturer gradeV12K
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeG
