Vargus

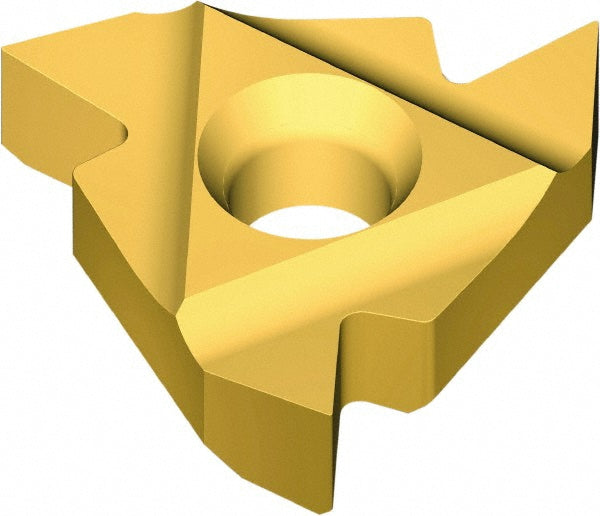

Solid Carbide Insert, Grade VKX, TiN - Vargus 42169
MFR# 42169Series Mini 3
$30.08List $38.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeVKX
MaterialSolid Carbide
CoatingTiN
Description
The Vargus 42169 is a solid carbide indexable insert, grade VKX, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0500
Included angle60
Inscribed circle (mm)6.00
Insert handRight Hand
Insert materialSolid Carbide
Insert size code6
Insert style6.0KIR
Manufacturer gradeVKX
Number of teeth per side1
Pitch (mm)0.50-1.50
Primary workpiece materialUniversal
StandardsISO 9001:2008
Thickness (mm)2.60
Threads per inch48-16
Thread standardPartial Profile 60 Degree
Thread typeInternal
