Vargus

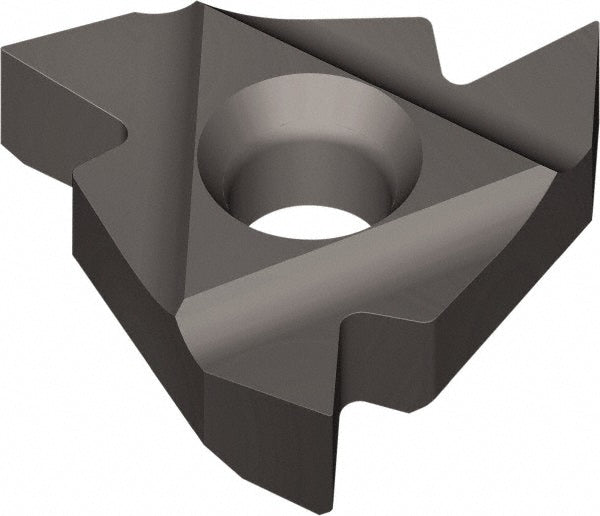

Solid Carbide Insert, Grade VBX, TiCN - Vargus 42268
MFR# 42268Series Mini 3
$33.98List $42.82
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeVBX
MaterialSolid Carbide
CoatingTiCN
Description
The Vargus 42268 is a solid carbide indexable insert, grade VBX, TiCN coated. Suited for universal.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0500
Included angle60
Inscribed circle (mm)4.00
Insert handRight Hand
Insert materialSolid Carbide
Insert size code4
Insert style4.0KIR
Manufacturer gradeVBX
Number of teeth per side1
Pitch (mm)0.50-1.25
Primary workpiece materialUniversal
StandardsISO 9001:2008
Thickness (mm)1.87
Threads per inch48-20
Thread standardPartial Profile 60 Degree
Thread typeInternal
