Vargus

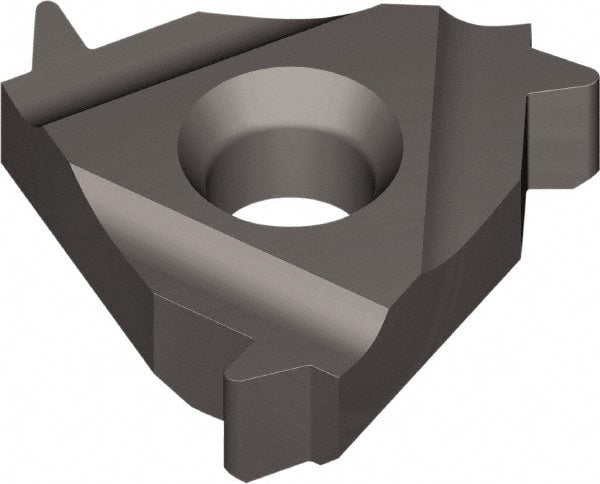

3/8" IC Solid Carbide Insert, Grade VTX, Coated - Vargus 50124
MFR# 50124Series Standard
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeVTX
MaterialSolid Carbide
CoatingCoated
Description
The Vargus 50124 is a solid carbide indexable insert, grade VTX, Coated coated. Suited for universal.
Specifications
Ansi codeANSI B1.9.1973
Coating finishCoated
Coating processPVD
Included angle45; 7
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code3
Insert style3ER
Iso 90012008
Manufacturer gradeVTX
Material gradeMicrograin
Number of teeth per side1
Primary workpiece materialUniversal
StandardsANSI B1.9.1973
Thickness (mm)3.60
Threads per inch10
Thread standardAmerican Buttress
Thread typeExternal
