Vargus

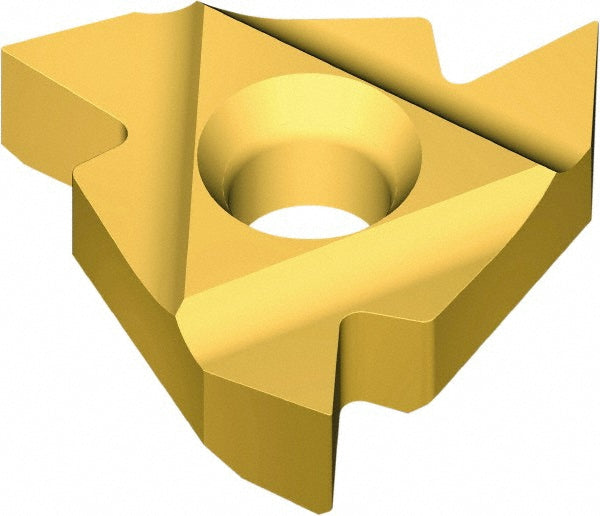

1/4" IC Solid Carbide Insert, Grade VKX, Coated - Vargus 50270
MFR# 50270Series Standard
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVKX
MaterialSolid Carbide
CoatingCoated
Description
The Vargus 50270 is a solid carbide indexable insert, grade VKX, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0500
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code2
Insert style2IR
Manufacturer gradeVKX
Material gradeMicrograin
Number of teeth per side1
Pitch (mm)0.50 to 1.50
Primary workpiece materialUniversal
StandardsISO 9001:2008
Thickness (mm)3.17
Threads per inch48-16
Thread typeInternal
