Vargus
1/4" IC Solid Carbide Insert, Grade VTX, TiAlN - Vargus 50330
MFR# 50330
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVTX
MaterialSolid Carbide
CoatingTiAlN
Description

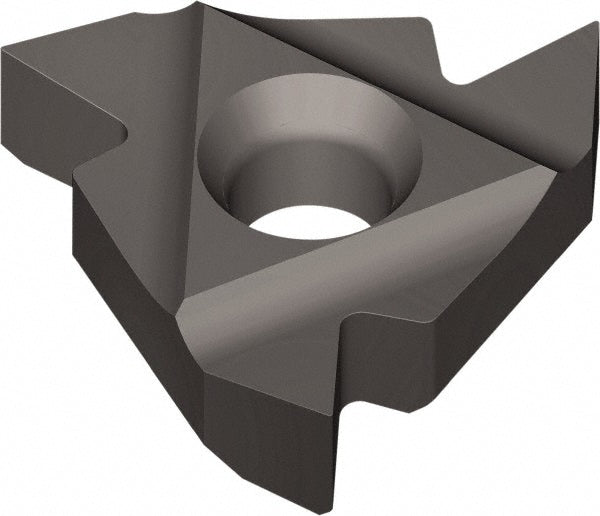

The Vargus 50330 is a solid carbide indexable insert, grade VTX, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert style2IR
Manufacturer gradeVTX
Number of teeth per side1
Thickness (mm)3.17
Threads per inch12
Thread standardUN
Thread typeInternal
