Vargus

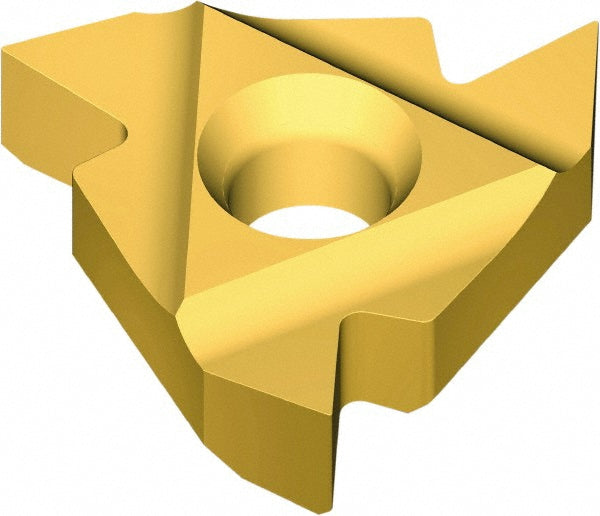

1/4" IC Solid Carbide Insert, Grade VKX, TiN - Vargus 50409
MFR# 50409Series Standard
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVKX
MaterialSolid Carbide
CoatingTiN
Description
The Vargus 50409 is a solid carbide indexable insert, grade VKX, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Coating processPVD
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code2
Insert style2IR
Iso 90012008
Manufacturer gradeVKX
Number of teeth per side1
Primary workpiece materialUniversal
StandardsANSI B1.20.3-1976
Thickness (mm)3.17
Threads per inch18
Thread standardNPTF
Thread typeInternal
