Vargus

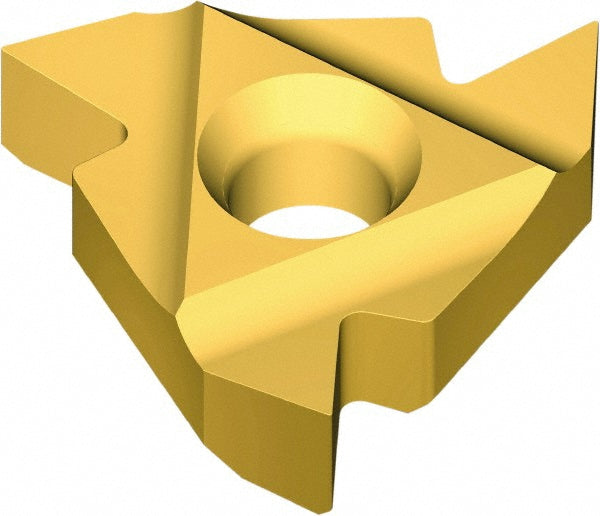

1/4" IC Solid Carbide Insert, Grade VKX, TiN - Vargus 50563
MFR# 50563Series Standard
$23.21List $29.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVKX
MaterialSolid Carbide
CoatingTiN
Description
The Vargus 50563 is a solid carbide indexable insert, grade VKX, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Coating processPVD
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code2
Insert style2IR
Iso 90012008
Manufacturer gradeVKX
Number of teeth per side1
Primary workpiece materialUniversal
StandardsANSI B1.1:74
Thickness (mm)3.17
Threads per inch32
Thread standardUN
Thread typeInternal
