Vargus

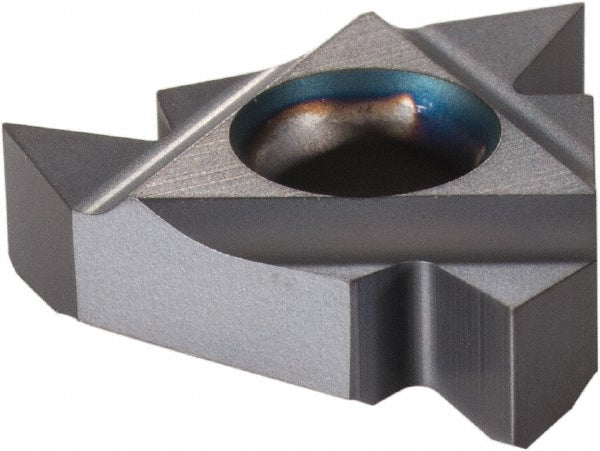

1/4" IC Solid Carbide Insert, Grade VTX, TiAlN - Vargus 50953
MFR# 50953Series Standard
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVTX
MaterialSolid Carbide
CoatingTiAlN
Description
The Vargus 50953 is a solid carbide indexable insert, grade VTX, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0030
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code3
Insert style3ER
Manufacturer gradeVTX
Pitch (mm)0.50-3.00
Primary workpiece materialUniversal
StandardsISO 9001:2008
Threads per inch48-8
Thread standardPartial Profile 60 Degree
Thread typeExternal
