Vargus

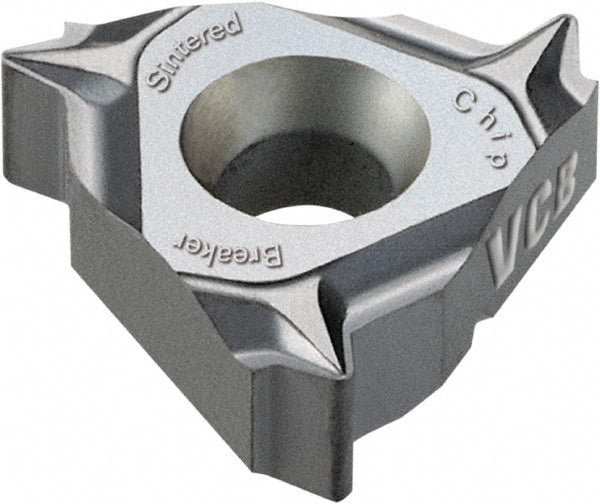

1/4" IC Solid Carbide Insert, Grade VCB, TiAlN - Vargus 53562
MFR# 53562Series Standard
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVCB
MaterialSolid Carbide
CoatingTiAlN
Description
The Vargus 53562 is a solid carbide indexable insert, grade VCB, TiAlN coated. Suited for universal.
Specifications
ChipbreakerSCB
Coating finishTiAlN
Coating processPVD
Corner radius0.0500
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code2
Insert style2JIR
Manufacturer gradeVCB
Number of teeth per side1
Pitch (mm)0.50-1.50
Primary workpiece materialUniversal
StandardsISO 9001:2008
Thickness (mm)3.17
Threads per inch48-16
Thread standardPartial Profile 60 Degree
Thread typeInternal
