Vargus

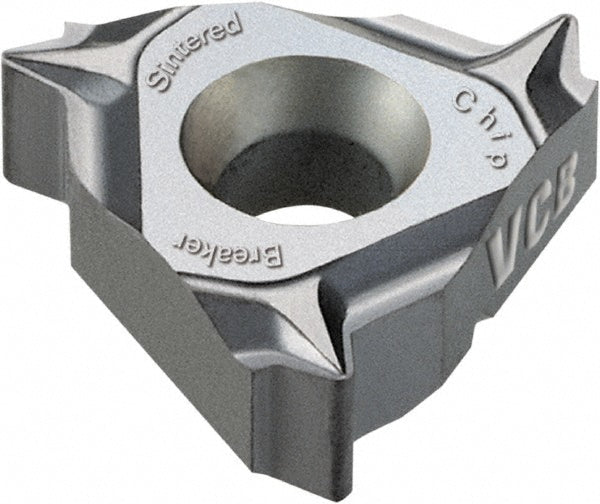

1/4" IC Solid Carbide Insert, Grade VCB, TiAlN - Vargus 53563
MFR# 53563
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVCB
MaterialSolid Carbide
CoatingTiAlN
Description
The Vargus 53563 is a solid carbide indexable insert, grade VCB, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert style2JIR
Manufacturer gradeVCB
Number of teeth per side1
Pitch (mm)1.00
Thickness (mm)3.17
Thread standardISO
Thread typeInternal
