Vargus

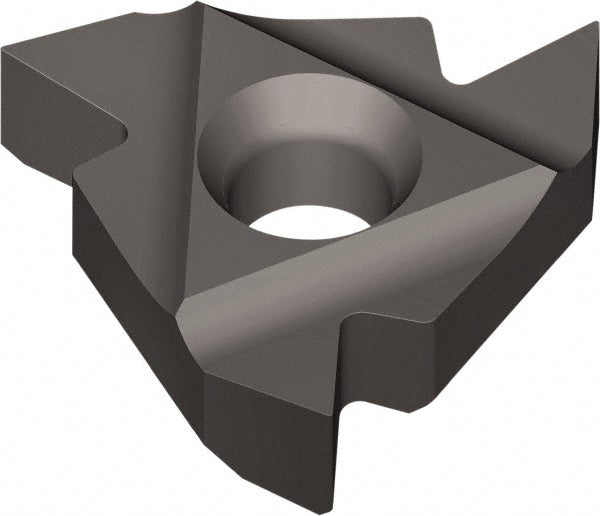

1/4" IC Solid Carbide Insert, Grade VTX, TiAlN - Vargus 53625
MFR# 53625Series Standard
$23.86List $30.07
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVTX
MaterialSolid Carbide
CoatingTiAlN
Description
The Vargus 53625 is a solid carbide indexable insert, grade VTX, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code2
Insert style2IR
Iso 90012008
Manufacturer gradeVTX
Number of teeth per side1
Pitch (mm)1.00
Primary workpiece materialUniversal
StandardsDIN 13
Thickness (mm)3.17
Thread standardISO
Thread typeInternal
