Vargus

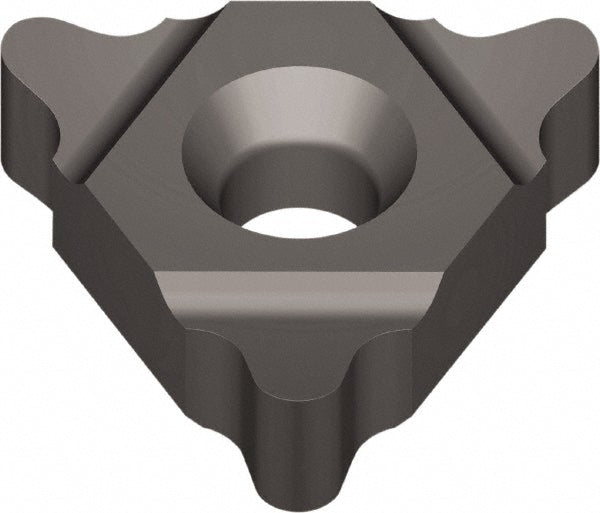

1/4" IC Solid Carbide Insert, Grade VTX, TiAlN - Vargus 53630
MFR# 53630Series U Style
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeVTX
MaterialSolid Carbide
CoatingTiAlN
Description
The Vargus 53630 is a solid carbide indexable insert, grade VTX, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert size code2
Insert style2UIR
Iso 90012008
Manufacturer gradeVTX
Number of teeth per side1
Primary workpiece materialUniversal
StandardsANSI B1.1:74
Thickness (mm)3.17
Threads per inch11
Thread standardUN
Thread typeInternal
