Vargus

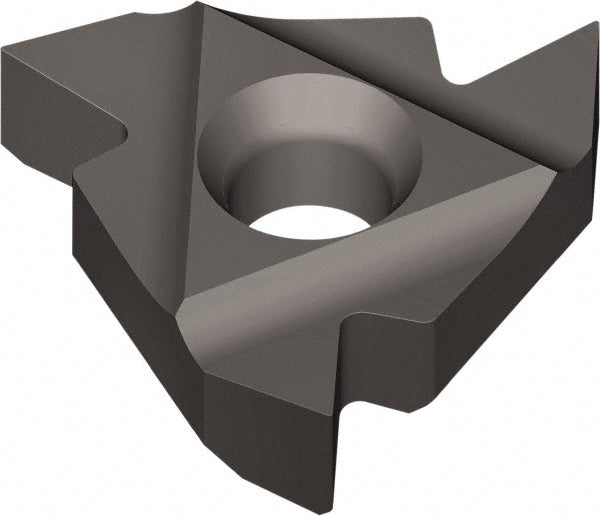

3/8" IC Solid Carbide Insert, Grade VTX, TiAlN - Vargus 53814
MFR# 53814Series Standard
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeVTX
MaterialSolid Carbide
CoatingTiAlN
Description
The Vargus 53814 is a solid carbide indexable insert, grade VTX, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code3
Insert style3IR
Manufacturer gradeVTX
Number of teeth per side1
Primary workpiece materialUniversal
StandardsISO 9001:2008
Thickness (mm)3.60
Threads per inch8
Thread standardNPT
Thread typeInternal
Usas b2 11968
