Vargus

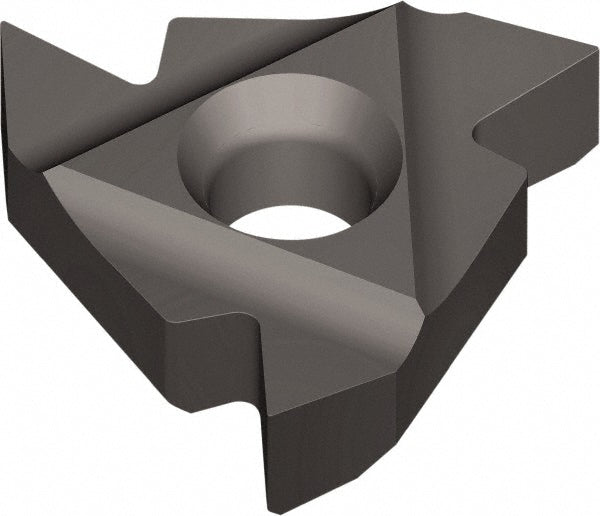

3/8" IC Solid Carbide Insert, Grade VTX, Coated - Vargus 53817
MFR# 53817Series Standard
$21.12List $27.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeVTX
MaterialSolid Carbide
CoatingCoated
Description
The Vargus 53817 is a solid carbide indexable insert, grade VTX, Coated coated. Suited for universal.
Specifications
Ansi codeANSI B1.20.3-1976
Coating finishCoated
Coating processPVD
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code3
Insert style3ER
Iso 90012008
Manufacturer gradeVTX
Material gradeMicrograin
Number of teeth per side1
Primary workpiece materialUniversal
StandardsANSI B1.20.3-1976
Thickness (mm)3.60
Threads per inch18
Thread standardNPTF
Thread typeExternal
