Vargus

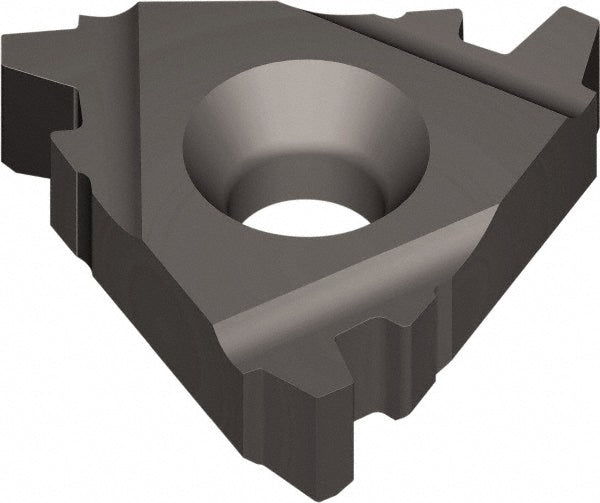

1/2" IC Solid Carbide Insert, Grade VTX, TiAlN - Vargus 59488
MFR# 59488Series Standard
$30.08List $38.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeVTX
MaterialSolid Carbide
CoatingTiAlN
Description
The Vargus 59488 is a solid carbide indexable insert, grade VTX, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Included angle29
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code4
Insert style4IR
Iso 90012008
Manufacturer gradeVTX
Number of teeth per side1
Primary workpiece materialUniversal
StandardsANSI B1.5:1988
Thickness (mm)4.76
Threads per inch6
Thread standardAcme 3G
Thread typeInternal
