Vargus

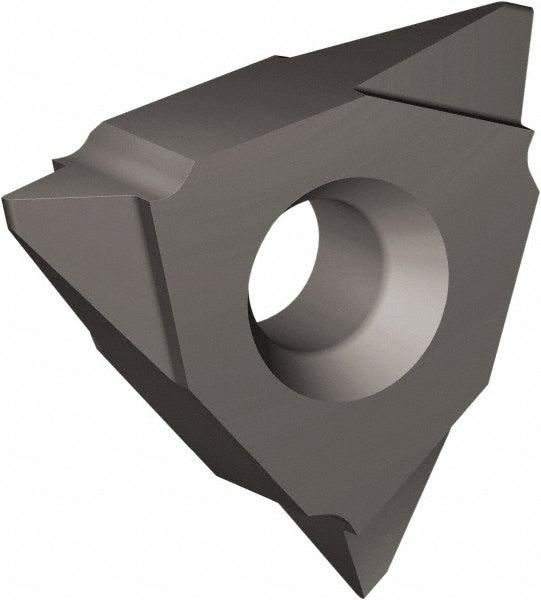

3/8" IC Solid Carbide Insert, Grade VTX, TiAlN - Vargus 62021
MFR# 62021
$24.06List $30.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeVTX
MaterialSolid Carbide
CoatingTiAlN
Description
The Vargus 62021 is a solid carbide indexable insert, grade VTX, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting directionRight Hand
External pitch (mm)0.5-3
External threads per inch48-8
Hole diameter0.1516
Inscribed circle in3/8
Insert materialSolid Carbide
Insert size code16
Insert style3VER
Manufacturer gradeVTX
Material gradeMicrograin
Primary workpiece materialUniversal
RakePositive
Rake angle10
StandardsISO 9001:2008
Thickness0.1417
Thread standardPartial Profile 60 Degree
Thread typeExternal
