Vlier

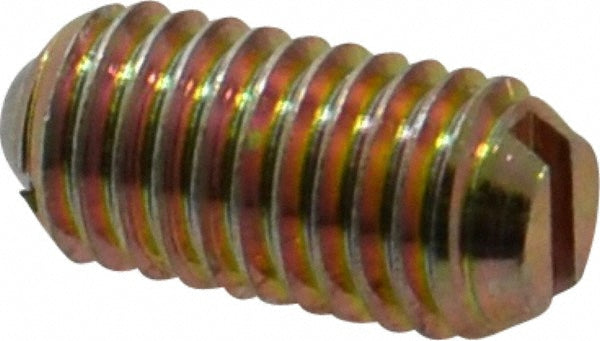

M8 x 1.25 Spring Plunger - Vlier BMH8AN
MFR# BMH8AN
$4.55List $5.62
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier BMH8AN is a M8 x 1.25 steel spring plunger.
Specifications
ApplicationControlled End Force; Smallest & Lightest Spring-Loaded Device
Ball diameter0.1960
Ball materialSteel
Body length0.6300
Body materialSteel
Color codePurple
Final end force lb13.49
Final end force n60.00
Initial end force lb9.00
Initial end force n40.00
Locking elementYes
Maximum ball reach0.0590
Thread pitch1.25mm
Thread sizeM8 x 1.25
