Vlier
M12 x 1.75 Spring Plunger - Vlier DBM12AN
MFR# DBM12AN
$9.05List $11.36
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

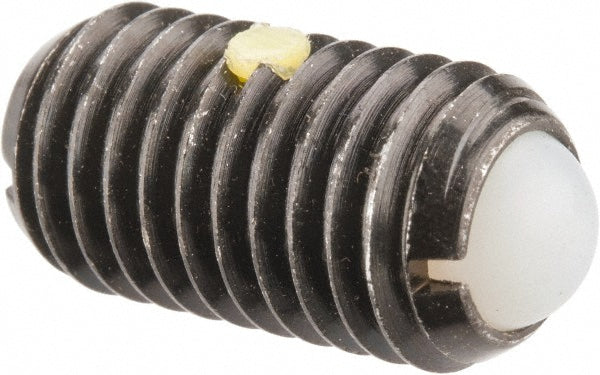

The Vlier DBM12AN is a M12 x 1.75 steel spring plunger.
Specifications
ApplicationControlled End Force
Ball diameter0.3150
Ball materialNylon
Body length0.8660
Body materialSteel
Color codePurple
Final end force lb12.36
Final end force n55.00
FinishZinc-Plated
Initial end force lb6.75
Initial end force n30.03
Locking elementYes
Maximum ball reach0.0980
Thread pitch1.75mm
Thread sizeM12 x 1.75
