Vlier
1/4-20 Spring Plunger - Vlier DL54
MFR# DL54
$5.29List $6.64
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

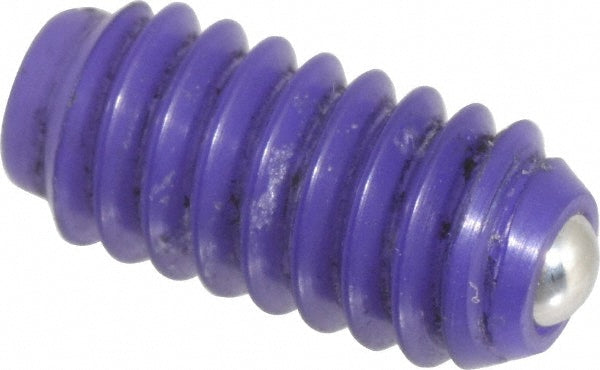

The Vlier DL54 is a 1/4-20 delrin spring plunger.
Specifications
ApplicationControlled End Force
Ball diameter0.1250
Ball materialStainless Steel
Body length0.5310
Body materialDelrin
Color codePurple
Final end force lb2.50
Initial end force lb1.00
Locking elementNo
Maximum ball reach0.0300
Thread size1/4-20
