Vlier

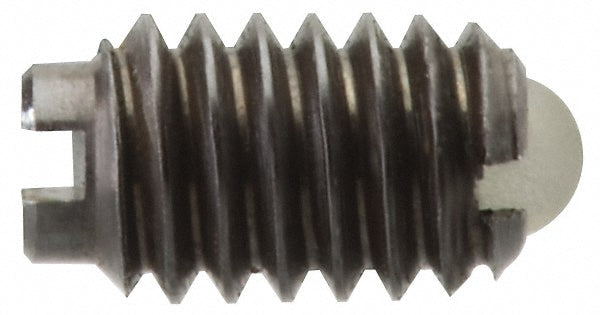

5/16-18 Spring Plunger - Vlier DSSBL56N
MFR# DSSBL56N
$7.30List $9.17
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier DSSBL56N is a 5/16-18 stainless steel spring plunger.
Specifications
ApplicationControlled End Force
Ball diameter0.1560
Ball materialNylon
Body length0.5780
Body materialStainless Steel
Color codePurple
Final end force lb4.25
FinishZinc-Plated
Initial end force lb2.00
Locking elementYes
Maximum ball reach0.0400
Thread size5/16-18
