Vlier
M12x1.75 Spring Plunger - Vlier FRM12P
MFR# FRM12P
$22.01List $27.63
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

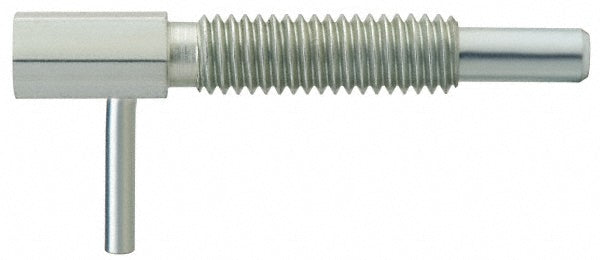

The Vlier FRM12P is a M12x1.75 spring plunger.
Specifications
Body length54mm
Body length (mm)54.00
Final end force22.3N
Final end force n22.30
Handle diameter4.8in
Handle diameter (mm)4.80
Handle length25.4mm
Handle length (mm)25.40
Handle materialSteel
Head height0.84in; 21.34mm
Hex size12mm
Hex size (mm)12.00
Initial end force4.5N
Initial end force n4.50
Length between head and thread3.80
Length between head thread3.8mm
Length under head32mm
Length under head (mm)32.00
Locking elementYes
Plunger diameter7mm
Plunger length2.1000
Plunger projection19mm
Plunger projection (mm)19.00
Plunger typeLocking
Thread length1.11in; 28.19mm
Thread sizeM12x1.75
