Vlier
3/8-16 Spring Plunger - Vlier NS59
MFR# NS59
$5.97List $7.49
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

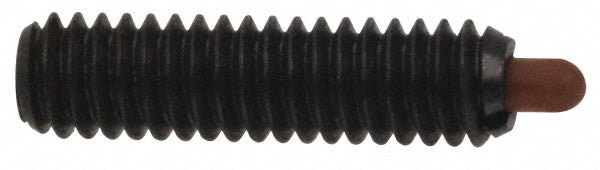

The Vlier NS59 is a 3/8-16 steel spring plunger.
Specifications
Body length in1-1/8
Body materialSteel
Final end force lb7.20
Initial end force lb2.80
Locking elementNo
Maximum plunger diameter0.1870
Minimum plunger diameter0.1850
Nose materialPhenolic
Plunger length in1-1/8
Plunger length typeStandard
Plunger projection in3/16
Thread length in1-1/8
Thread size3/8-16
