Vlier

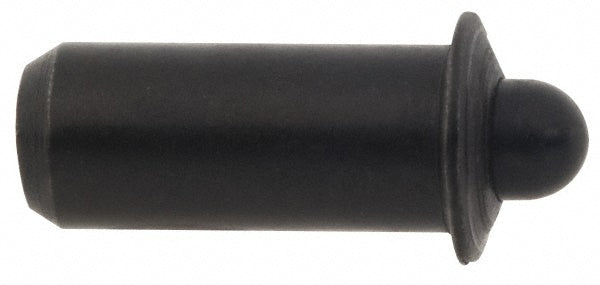

Spring Plunger - Vlier PFP51
MFR# PFP51
$3.53List $4.42
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier PFP51 is a steel spring plunger.
Specifications
ApplicationLight End Force
Body diameter0.1880; 0.188in
Body length0.441in; 0.4410
Body materialSteel
Final end force lb2.00; 2lb
Flange diameter0.25in
Flange thickness0.0440
Initial end force lb0.75; 0.75lb
Length under flange0.4410
Locking elementNo
Nose diameter0.121in
Nose materialSteel
Plunger diameter0.121in
Plunger length0.4850
Plunger projection0.0940
