Vlier
#8-32 Spring Plunger - Vlier PH51
MFR# PH51
$5.90List $7.27
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

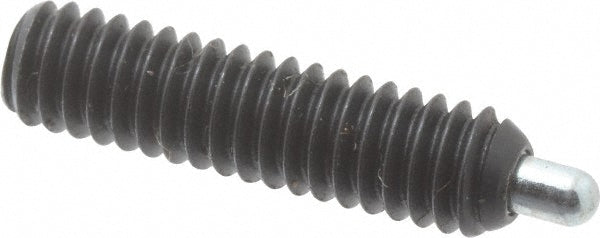

The Vlier PH51 is a #8-32 steel spring plunger.
Specifications
Body length in5/8
Body materialSteel
Final end force lb2.30
Hex size0.0630
Initial end force lb0.70
Locking elementNo
Maximum plunger diameter0.0700
Middle end force1.50
Minimum plunger diameter0.0690
Nose materialSteel
Plunger length in5/8
Plunger length typeStandard
Plunger projection in3/32
Thread length in5/8
Thread size#8-32
