Vlier
5/8-11 in Spring Plunger - Vlier PRSN625P
MFR# PRSN625P
$15.82List $19.86
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

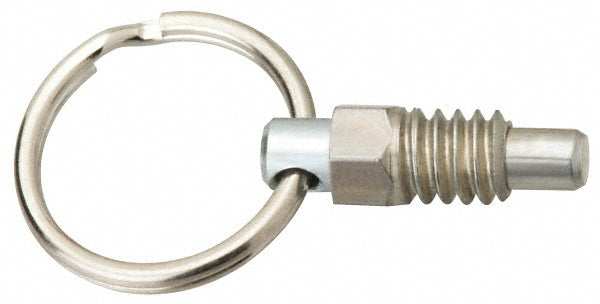

The Vlier PRSN625P is a 5/8-11 in steel spring plunger.
Specifications
Body length1.0000
Final end force5lb
Final end force lb5.00
Head height0.31in
Hex size0.6200
Initial end force1.25lb
Initial end force lb1.25
Length under head0.6900
Locking elementYes
MaterialSteel
Plunger diameter0.38in
Plunger length1.3100
Plunger projection0.4400
Plunger typeNon-Locking
Ring diameter1.0000
Thread length0.56in
Thread size5/8-11 in
