Vlier
M10 x 1.5 Spring Plunger - Vlier SBMH10N
MFR# SBMH10N
$6.85List $8.59
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

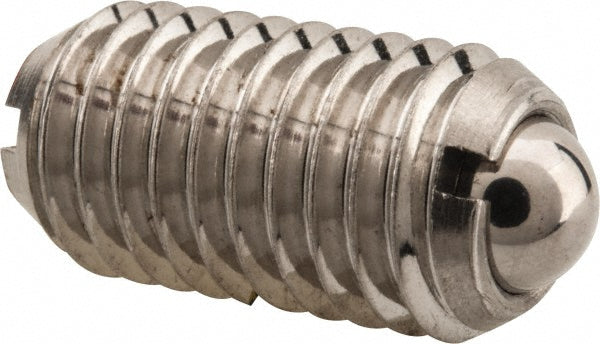

The Vlier SBMH10N is a M10 x 1.5 stainless steel spring plunger.
Specifications
Ball diameter0.2360
Ball materialStainless Steel
Body length0.7480
Body materialStainless Steel
Color codePurple
Final end force lb20.23
Final end force n90.00
Initial end force lb13.49
Initial end force n60.00
Locking elementYes
Maximum ball reach0.0790
Thread sizeM10 x 1.5
