Vlier
M6 x 1 Spring Plunger - Vlier SBMH6P
MFR# SBMH6P
$6.28List $7.75
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

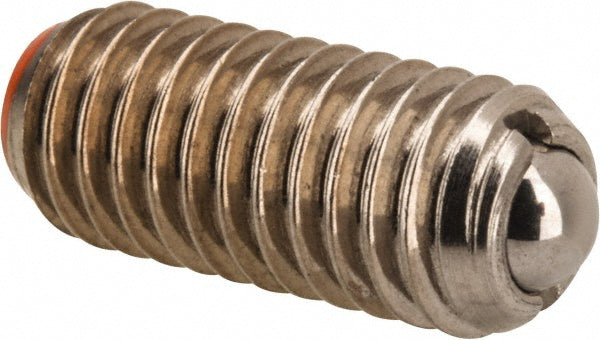

The Vlier SBMH6P is a M6 x 1 stainless steel spring plunger.
Specifications
ApplicationControlled End Force; Side-Load Tolerant; Smallest & Lightest Spring-Loaded Device
Ball diameter0.1370
Ball materialStainless Steel
Body length0.5510
Body materialStainless Steel
Color codePurple
Final end force lb9.00
Final end force n40.00
Initial end force lb6.29
Initial end force n28.00
Locking elementYes
Maximum ball reach0.0390
Thread pitch1mm
Thread sizeM6 x 1
