Vlier

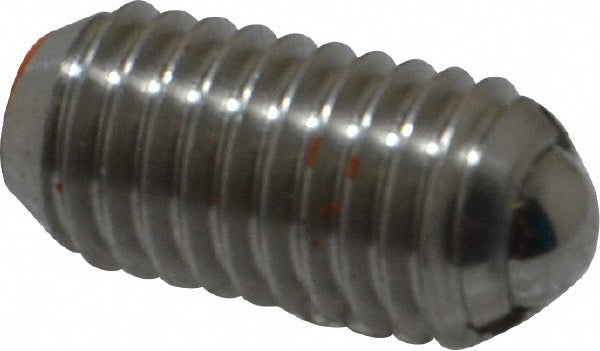

M8 x 1.25 Spring Plunger - Vlier SBMH8
MFR# SBMH8
$5.83List $7.32
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SBMH8 is a M8 x 1.25 stainless steel spring plunger.
Specifications
ApplicationControlled End Force; Side-Load Tolerant; Smallest & Lightest Spring-Loaded Device
Ball diameter0.1960
Ball materialStainless Steel
Body length0.6300
Body materialStainless Steel
Color codePurple
Final end force lb13.49
Final end force n60.00
Initial end force lb9.00
Initial end force n40.00
Locking elementNo
Maximum ball reach0.0590
Thread pitch1.25mm
Thread sizeM8 x 1.25
