Vlier

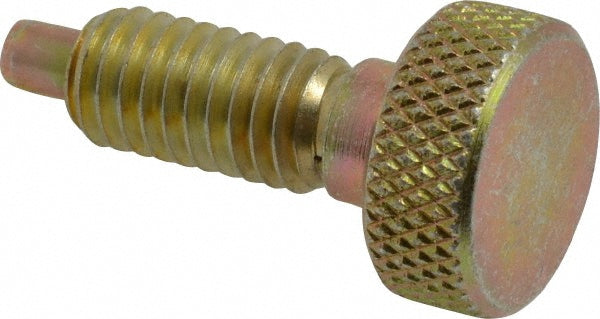

3/8-16 in Spring Plunger - Vlier SL375
MFR# SL375
$10.03List $12.60
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SL375 is a 3/8-16 in steel spring plunger.
Specifications
Body length0.9400
Final end force8lb
Final end force lb8.00
FinishZinc Gold Chromate
Head diameter0.75in
Head height0.31in
Head shoulder height0.5000
Initial end force1lb
Initial end force lb1.00
Knob styleKnurled
Length under head shoulder0.7500
Locking elementNo
MaterialSteel
Maximum plunger diameter0.1850
Plunger diameter tolerance+0.001/-0.000
Plunger length1.2500
Plunger projection0.2180
Plunger typeNon-Locking
Thread length0.75in
Thread size3/8-16 in
