Vlier

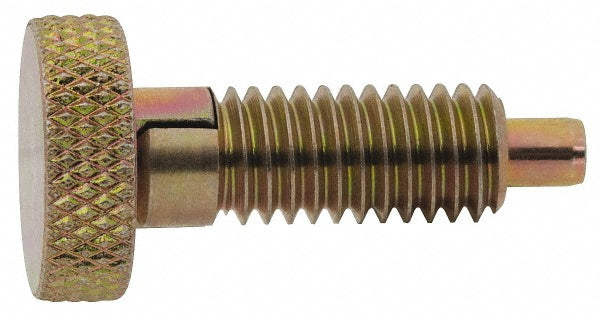

M12x1.75 Spring Plunger - Vlier SLFM12
MFR# SLFM12
$20.96List $25.50
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SLFM12 is a M12x1.75 steel spring plunger.
Specifications
Body length17mm
Body length (mm)17.00
Final end force17.8N; 4lb
Final end force lb4.00
Final end force n17.80
FinishZinc Gold Chromate
Head diameter1in; 25.4mm
Head height0.5in; 12.7mm
Hex size12mm
Hex size (mm)12.00
Initial end force2.22N; 0.5lb
Initial end force lb0.50
Initial end force n2.22
Knob styleKnurled
Length under head shoulder0.9000
Locking elementNo
MaterialSteel
Maximum plunger diameter0.2500
Plunger length1.4000
Plunger projection0.2500
Plunger typeLocking
Thread length0.65in; 16.51mm
Thread sizeM12x1.75
