Vlier
M12x1.75 Spring Plunger - Vlier SLM12
MFR# SLM12
$15.54List $19.23
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

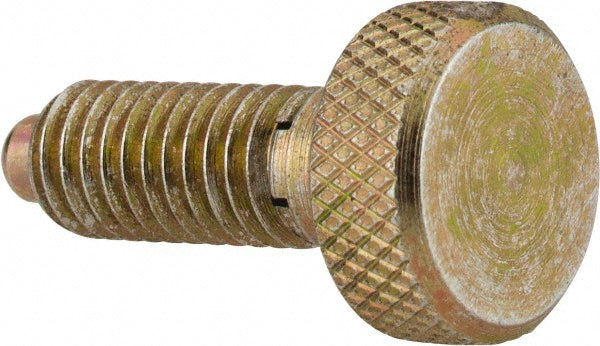

The Vlier SLM12 is a M12x1.75 steel spring plunger.
Specifications
Body length1.1400
Final end force44.5N; 10lb
Final end force lb10.00
Final end force n44.50
FinishZinc Gold Chromate
Head diameter0.984in; 25mm
Head height0.315in; 10mm
Head shoulder height0.6300
Initial end force4.45N; 1lb
Initial end force lb1.00
Initial end force n4.45
Knob styleKnurled
Length under head shoulder0.9050
Locking elementNo
MaterialSteel
Maximum plunger diameter0.2360
Plunger diameter tolerance+0.000/-0.001
Plunger length1.5350
Plunger projection0.2360
Plunger typeNon-Locking
Thread length0.905in; 23mm
Thread sizeM12x1.75
