Vlier

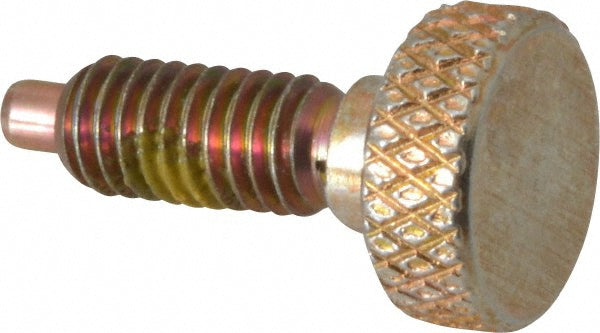

Spring Plunger - Vlier SLM6P
MFR# SLM6P
$16.60List $20.55
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SLM6P is a spring plunger.
Specifications
Body length0.6300
Final end force lb4.00
Final end force n17.80
Head diameter0.5120
Head height0.1970
Head shoulder height0.3150
Initial end force lb1.00
Initial end force n4.45
Knob styleKnurled
Length under head shoulder0.5120
Locking elementYes
Maximum plunger diameter0.1180
Plunger diameter tolerance+0.000/-0.001
Plunger length0.8270
Plunger projection0.1180
Plunger typeNon-Locking
Thread length0.5120
