Vlier

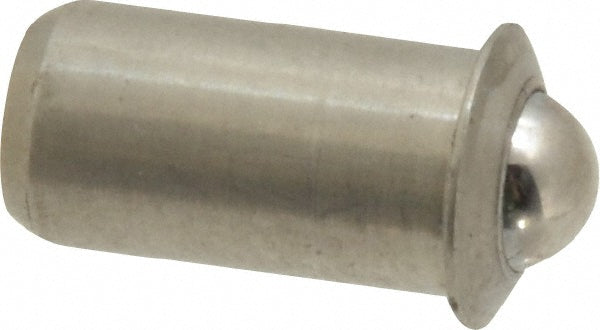

Spring Plunger - Vlier SPFB54
MFR# SPFB54
$3.67List $4.61
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SPFB54 is a stainless steel spring plunger.
Specifications
Ball diameter0.1560
Ball materialStainless Steel
Body diameter0.2500
Body length0.4710
Body materialStainless Steel
Final end force lb7.00
FinishPassivate
FlangeYes
Flange diameter0.3120
Flange thickness0.0450
Initial end force lb3.00
Length under flange0.4710
Locking elementNo
Maximum ball reach0.0700
Tolerance (mm)+0.002
