Vlier

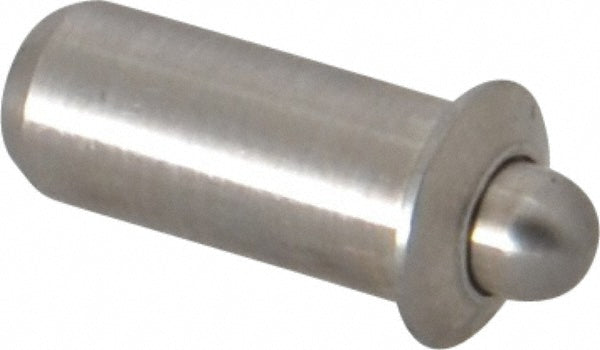

Spring Plunger - Vlier SPFP52
MFR# SPFP52
$3.47List $4.36
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SPFP52 is a stainless steel spring plunger.
Specifications
ApplicationLight End Force
Body diameter0.1880; 0.188in
Body length0.441in; 0.4410
Body materialStainless Steel
Final end force lb4.50; 4.5lb
Flange diameter0.25in
Flange thickness0.0440
Initial end force lb1.50; 1.5lb
Length under flange0.4410
Locking elementNo
Nose diameter0.121in
Nose materialStainless Steel
Plunger diameter0.121in
Plunger length0.4850
Plunger projection0.0940
