Vlier

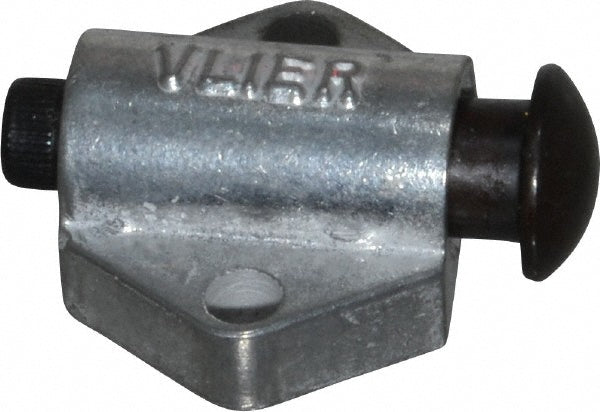

Spring Plunger - Vlier SS88
MFR# SS88
$5.49List $6.90
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SS88 is a aluminum spring plunger.
Specifications
Base thickness in0.2188in
Base width in0.875in
Body length in0.688in; 11/16
Body materialAluminum
Body width0.8750
Distance between mount hole centers in21/32; 0.656in
Distance between mount hole edge0.5930
Distance between mount hole to edge0.593in
Final end force14.9lb
Initial end force5.13lb
Middle end force lb10.00
Mounting slot length0.136in
Mounting slot width in0.136in
Stop head outside diameter in0.375in
Stop materialSteel
Stroke length in1/8
