Vlier

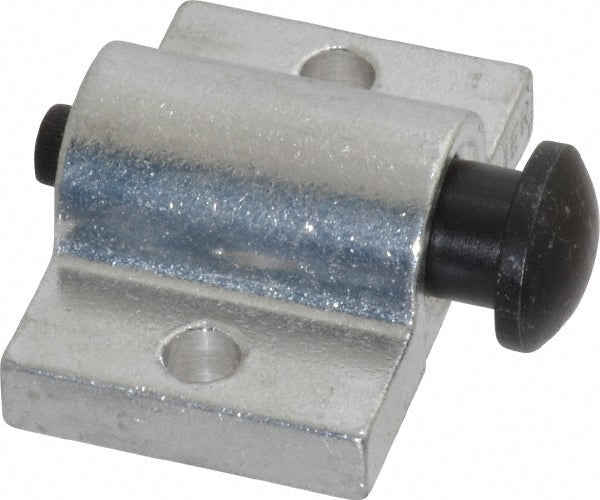

Spring Plunger - Vlier SS90
MFR# SS90
$8.06List $9.94
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SS90 is a aluminum spring plunger.
Specifications
Base thickness in0.312in
Base width in1.5in
Body length in1in; 1
Body materialAluminum
Body width1.5000
Distance between mount hole centers in1-1/8; 1.125in
Distance between mount hole edge0.8750
Distance between mount hole to edge0.875in
Final end force25.9lb
Initial end force2lb
Middle end force lb14.00
Mounting slot length in13/64
Mounting slot width in13/64; 0.2031in
Stop head outside diameter in0.5625in
Stop materialSteel
Stroke length in3/16
