Vlier

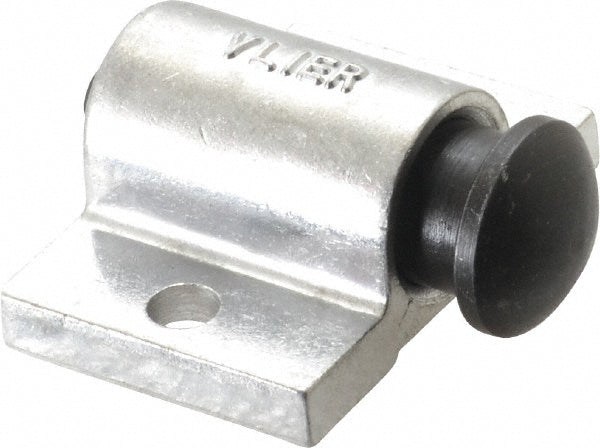

Spring Plunger - Vlier SS92
MFR# SS92
$12.14List $15.24
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SS92 is a aluminum spring plunger.
Specifications
Base thickness in0.4375in
Base width in2in
Body length in1.375in; 1-3/8
Body materialAluminum
Body width2.0000
Distance between mount hole centers in1-1/2; 1.5in
Distance between mount hole edge1.2180
Distance between mount hole to edge1.218in
Final end force45.4lb
Initial end force14.4lb
Middle end force lb32.00
Mounting slot length0.266in
Mounting slot width in17/64; 0.2656in
Stop head outside diameter in0.8125in
Stop materialSteel
Stroke length in1/4
