Vlier

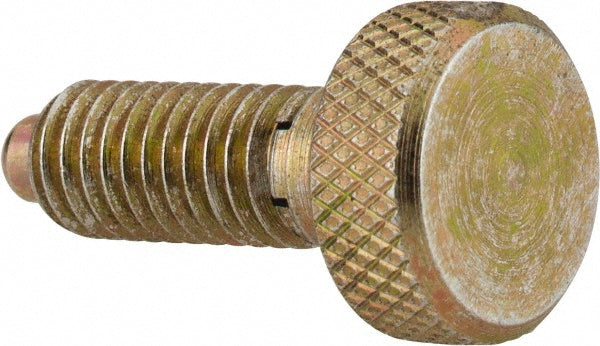

Spring Plunger - Vlier SSL250P
MFR# SSL250P
$13.14List $16.49
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SSL250P is a spring plunger.
Specifications
Body length0.7900
Final end force lb4.00
Head diameter0.5000
Head height0.1900
Head shoulder height0.3130
Initial end force lb1.00
Knob styleKnurled
Length under head shoulder0.5000
Locking elementYes
Maximum plunger diameter0.1230
Plunger diameter tolerance+0.001/-0.000
Plunger length0.8130
Plunger projection0.1250
Plunger typeNon-Locking
Thread length0.5000
